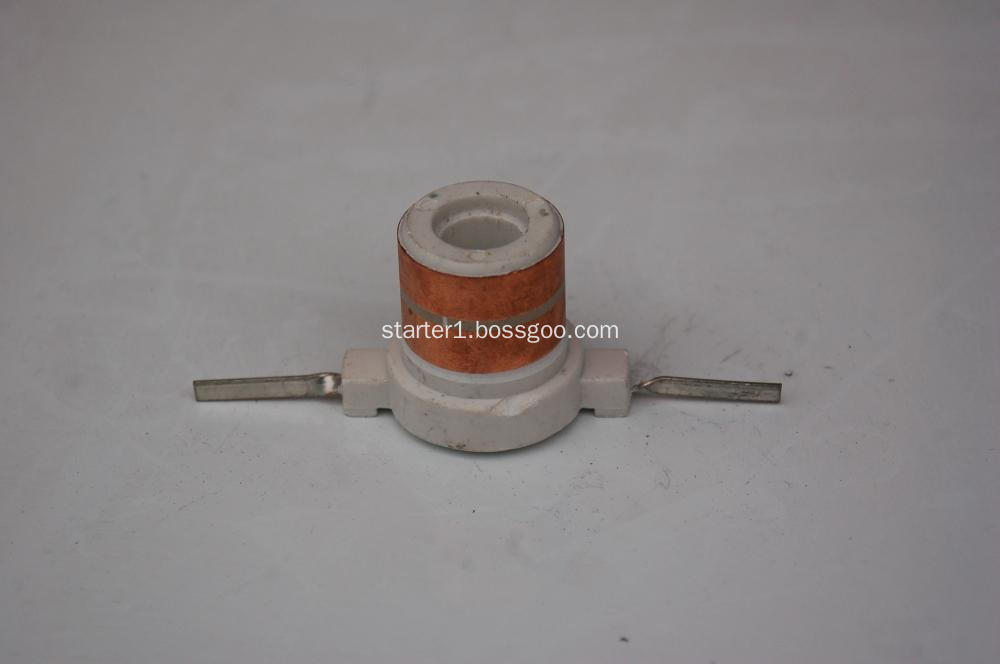

BOSCH SLIP RING
Nippondenso Slip ring
CS130
4D30
FORD 1G, 2G, 3G,
WAI NUMBER, OEM NUMBER , LESTER NUMBER.
GOOD QUALITY SLIP RING
Alternator Slip Ring FOR BOSCH,CATERPILLAR,CUMMINS,DAF,DELCO,DENSO,ISKRA,VALEO
Generator collector ring is the terminals of the rotor coil, excitation DC through the brush and the two ring contact is transmitted to the rotor excitation of. In order to prevent the serious phenomenon of severe image on the steel collector ring, the electric brush should be raised when the motor is stopped for a long time.. In order to improve the current distribution of the parallel brush, the power points of the movable collector ring slide contact surface is. In order to obtain good sliding properties, a spiral in the collector ring slot is effective.
Slip Ring Slip Rings, Slip Ring Assembly, Alternator Slip Rings, Alternator Slip Ring NINGBO ZHONGWANG AUTO FITTINGS CO.,LTD , http://www.autostarter-alternator.com
Double screw extruding sheeter twin parallel screw&barrel
Specification:
Diameter: Φ 45mm-Φ 200mm
L/D ratio: 16-35
Technical Information
Base Materials:
1)38CrMoAlA(JIS SACM645)
2)42CrMo(AISI 4140)
3)4Cr5MoSi V1 (JIS SKD-61)
4)9Cr18MOV
5)HPT
Bimetallic alloy materials:
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: >=950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year
Our advantages:
1)Excellent raw materials
2)Good customer service
3)Rapid delivery
4)Reasonable price
5)Production quickly
Experienced manufacture, we will be the best choice.
